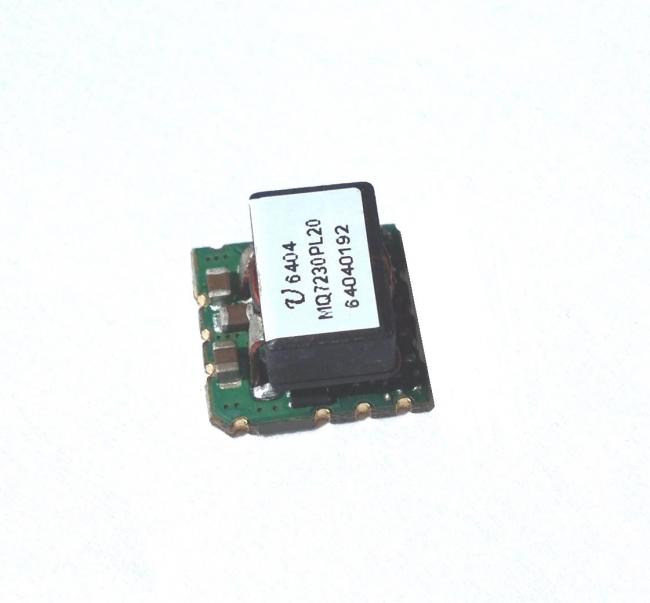

The MQ7230PL2Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5Vdc to 14Vdc and provide a precisely (2%) regulated dc output voltage programmable from 0.59 Vdc to 6Vdc via external resistor. Such a module is suitable to application with 5V or 12V power supply bus. TheMQ7230PL2 have a maximum output current of 6A respectively, with a typical full-load efficiency of over 94% at 5Vdc output voltage. The modules are in industry standard through-hole pin-out. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

?  Wide Operating Voltage: 4.5V ~14V

?  Output Voltage: 0.59V ~ 6V

?  Output Current Up to 6A

?  Power Good:Open-Collector

?  Over current/ short circuit protection

?  Over Temperature Protection

?  Minimal space on PCB:

u  0.48 in x 0.48 in x 0.32in

u  12.2mm x 12.2mm x 8.2mm

?  Operating temperature range: -40°C to 85°C

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
