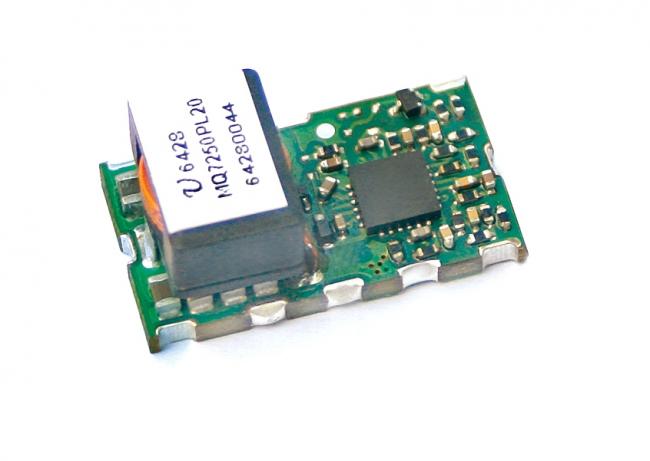

The MQ7250PL2 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5Vdc to 14Vdc and provide a precisely (2%) regulated dc output voltage programmable from 0.69 Vdc to 5.5Vdc via external resistor. Such a module is suitable to application with 5V or 12V power supply bus. The MQ7250PL2 have a maximum output current of 12A respectively, with a typical full-load efficiency of over 93% at 5Vdc output voltage. The modules are in industry standard through-hole pin-out. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection and easy-track.

?  Wide Operating Voltage: 4.5V ~14V

?  Output Voltage: 0.69V ~ 5.5V

?  Output Current Up to 12A

?  Power Good:Open-Collector

?  Over current/ short circuit protection

?  Over Temperature Protection

?  Minimal space on PCB:

¨  0. 8 in x 0.45 in x 0.34 in

¨  20.32mm x 11.43mm x 8.7mm

?  Operating temperature range: -40°C to 85°C

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
