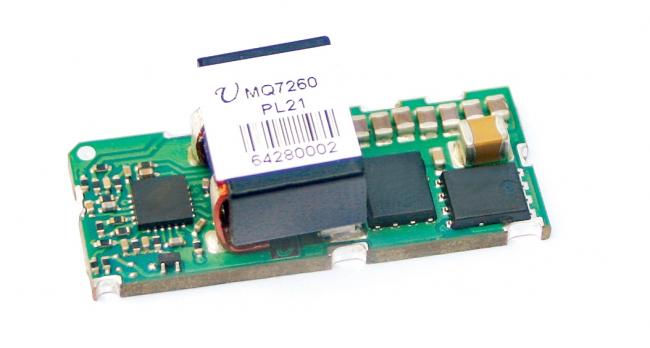

The Tarzan^TM MQ7260PL  Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5~14V and provide a precisely (2%) regulated dc output voltage programmable from 0.59 Vdc to 5.5Vdc via external resistor. Such a module is suitable to application with 3V, 5V or 12V power supply bus. The MQ7260PL2s have a maximum output current of 20A respectively, with a typical full-load efficiency of over 94%. The modules are in industry standard pin-out. Standard features include remote on/off with positive or negative logic and output voltage adjustment, over-current protection, over-temperature protection and easy-track.

?  Wide Operating Voltage:4.5V ~14V

?  Output Voltage: 0.69~5.5V

?  Output Current Up to 20A

?  Power Good: Open-Collector

?  Over current/ short circuit protection

?  Over Temperature Protection

?  Minimal space on PCB:

¨  0.53 in x 1.30 in x 0.43in

¨  13.46mm x 33.02mm x 11 mm

?  Operating temperature range: -40°C to 85°C

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
