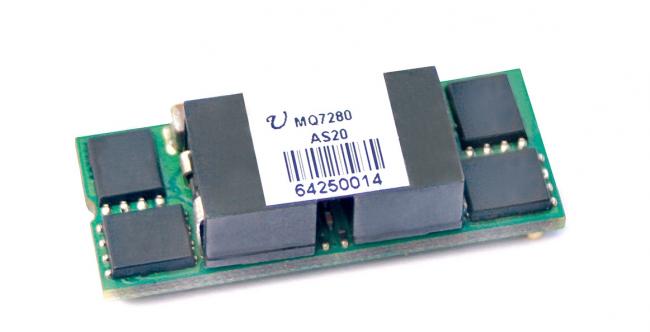

The  MegaTarzan^TM MQ7280AS2 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 6Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 12V power supply bus. The modules have a maximum output current rating of30Aat typical full-load efficiency over 93%. Default features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection. Option features include positive or negative logic  mode.

?  Wide operating voltage:

¨  6V ~14V

?  Output Current up to30A

?  Output voltage ripple: 20mVpp

?  High Efficiency 93%

?  Parallel operation up to 5 modules

?  Overcurrent /Shortcircuit protection

?  Over-temperature protection

?  Remote on/off control – negative or positive

?  High reliability: designed to meet 5 million hour MTBF

?  Output voltage remote sense compensation

?  Minimal space on PCB:

     33.0mm x  13.5mm x  10.1mm  or

     1.30in x 0.53in x 0.40in

?  No derating to +60℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant available

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
