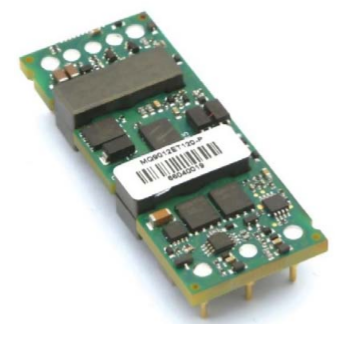

The MQ9012E Series Power Modules are isolated single output dc-dc converter that operates over a wide input voltage range of 18Vdc to 75Vdc and provide a precisely (1%) regulated dc output in standard 1/8-brick size. The module provides 12Vdc nominal output voltage rated for 10Adc output current, achieves 92% high efficiency at 24Vdc and 48Vdc input voltage application. Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage, overcurrent and over temperature protection.

Compliant to RoHS II EU “Directive 2011/65/EU (Z versions)

Industry standard, DOSA compliant footprint

      58.4mm x 22.9mm x 9.6mm

      2.30 in x 0.90 in x 0.38 in

Wide operating voltage:18~75V

Tightly regulated single output:  3.3V/30A 、5V/24A 、12V/10A

Output power up to 120W

High Efficiency 92% (48V Vin, 12V output, Full load)

Output Voltage adjust: 90% to 110% of VO,nom

Constant switching frequency

Remote sense

Output over-current / short-circuit protection

Over-temperature protection

Input under-voltage Protection

ON/OFF control polarity selectable

      Negative: R/C connect Vin- for normal operation

      Positive: R/C floating or High Level for normal operation

Monotonic start-up

Industrial Equipment

Surveillance

Wireless Networks

Distribute Power Architecture
