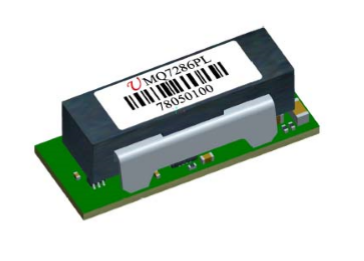

The MegaTarzan^TM MQ7286PL2 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5Vdc to 14.4Vdc and provide a precisely regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 12V power supply bus. The modules have a maximum output current rating of 40A at typical full-load efficiency over 91.5%. Default features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection. Option features include positive or negative logic mode.


? Wide operating voltage: 4.5V ~ 14.4V

? Output voltage programmable via external resistor:0.6V ~ 2.0V

? Output Current up to 40A

? Power Good signal

? Output voltage ripple: 20mVpp

? High Efficiency 93%

? Fixed switching frequency with capability of external synchronization.

? Over current /Short circuit protection (Hiccup)

? Over-temperature protection

? Remote on/off control – negative or positive

? High reliability: designed to meet 5 million hour MTBF

? Output voltage remote sense compensation

? Minimal space on PCB: 33.0mm x  13.5mm x  10.9mm or (1.30in x 0.53in x 0.43in)

? Wide operating temperature range (-40°C to 85°C)

? Design to meet UL/IEC/EN60950

? RoHS Compliant

? Workstations, servers

? Desktop computers

? DSP applications

? Distributed power architectures

? Telecommunications equipment

? Data communications equipment

? Wireless communications equipment
