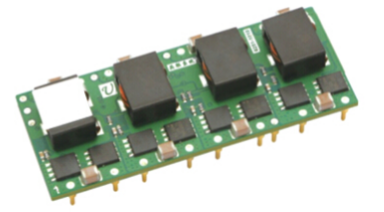

The MQ8135L2 series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 7Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 12V power supply bus. The modules have a maximum output current rating of 135A at typical full-load efficiency over 87%. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection. Option features include through hole or SMD.

? Unregulated 12V input voltage

? Output Voltage: 0.8V~2V

? Output Current up to 135A

? Output voltage ripple: 40mVPP

? High Efficiency 87%

? Remote on/off control

? Over current /short circuit protection

? Over-temperature protection

? Remote Sense

? Parallelized operation up to 5pcs

? High reliability: designed to meet 5 million hour MTBF

? Minimal space on PCB:

      68.1 mm x 26.5 mm x 10.6 mm or

      2.68 in x 1.05 in x 0.42 in

? Operating Temperature: -40℃~ +85℃

? UL/IEC/EN60950 compliant

? Workstations, servers

? Desktop computers

? DSP applications

? Distributed power architectures

? Telecommunications equipment

? Data communications equipment

? Wireless communications equipment
