The PoLA MQ7256L series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3.0Vdc~3.6Vdc and4.5Vdc to 5.5Vdc and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 3.3V or 5.0V power supply bus. The modules have a maximum output current rating of 15A at typical full-load efficiency over 94%. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection EasyTrack control and margin up/down. Option features include through hole or SMT, narrow or wide output trim range.



?  input voltage :

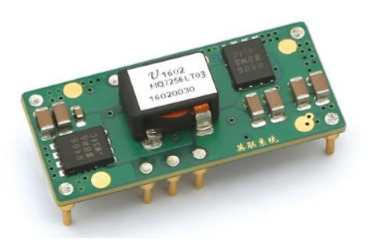

         MQ7256L03:  3.0~3.6V

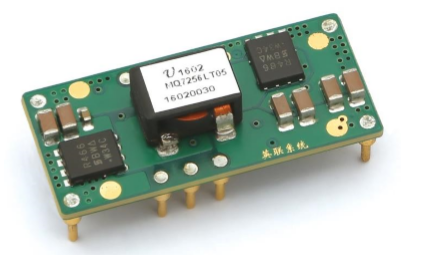

         MQ7256L05:  4.5~5.5V

? Output Voltage:

        MQ7256L03:  0.8V~2.5V

        MQ7256L05:  0.8V~3.6V

? Output Current up to 15A

? Output voltage ripple: 20mVPP

? High Efficiency 93%

? Margin-up /Margin-Down

? Remote on/off control – positive

? Over current /short-circuit protection

? Over-temperature protection

? Remote Sense

? EasyTrackTM

? High reliability: designed to meet 5 million hour MTBF

? Minimal space on PCB:  34.8 mm x 15.8mm x 8.5mm or  (1.37 in x 0.62 in x 0.33 in)

? Operating Temperature: -40℃ to +85℃

? UL/IEC/EN60950 compliant

? RoHS Compliant available

? Remote Control Logic mode

? PoLA Pin Configuration

? Workstations, servers

? Desktop computers

? DSP applications

? Distributed power architectures

? Telecommunications equipment

? Data communications equipment

? Wireless communications equipment
