The SuperTarzan^TM MQ7260A Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3Vdc to 5.5Vdc, and provide a precisely (2%) regulated dc output with industry standard pin out. Such a module is suitable to application with 3.3V or, 5V power supply bus. The modules have a maximum output currentrating of 20A at a typical full-load efficiency over 95%. Standard features include remote on/off with optional logic mode and trimmed output voltage, over-current protection, over-temperature protection. Option features include output voltage remote sense compensation.

Features

?  Wide operating voltage: 3.0~5.5V

?  Output Current up to 20A

?  Output voltage ripple: 20mV_PP

?  High Efficiency 95%

?  Overcurrent /shortcircuit protection

?  Over-temperature protection

?  Remote on/off control – negative or positive logic

?  High reliability: designed to meet 5 million hour MTBF

?  Output voltage remote sense compensation  (″s″ suffix)

?  Minimal space on PCB:

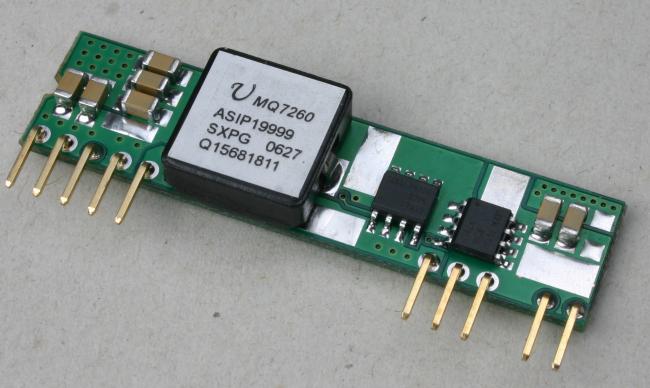

¨  TH: 2.0 in x 0.5 in x 0.31 in

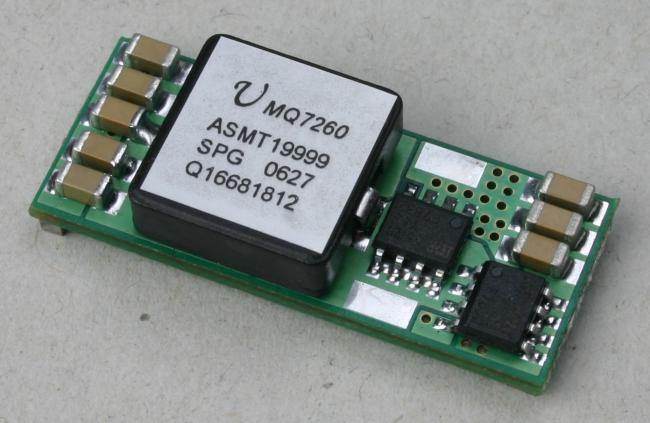

¨  SMT 1.30 in x 0.53 in x 0.265 in

?  No derating to +75℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant available

Options

?  Output voltage remote sense

?  Right Angle (Through Hole pin-out)

?  Remote Control Logic mode

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
