The CompatX^TM MQ7230L Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard TH and SMT pin-out. Such a module is suitable to application with 3V, 5V, 8V or 12V power supply bus. The modules have a maximum output current rating of 6A at a typical full-load efficiency over 93%.  The EZ-Tracking^TM function (MQ7230LA) simplifies the sequencing of supply voltages in multi-rail power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

?  Wide operating voltage: 3V~3.6V/  4.5~5.5v/10~14V

?  Output Current up to 6A

?  Wide-Output Voltage: 0.8~2.5V/ 0.9~3.6V /0.8 ~ 1.8V or 1.2 ~ 5.5V

?  Output voltage ripple: 20mV_PP

?  High Efficiency: 93 %

?  Overcurrent /shortcircuit protection

?  Over-temperature protection

?  Remote on/off control - positive logic

?  High reliability: designed to meet 5 million hour MTBF

?  Sequencing -- EZ-Tracking^TM (MQ7230LA only)

?  Minimal space on PCB:

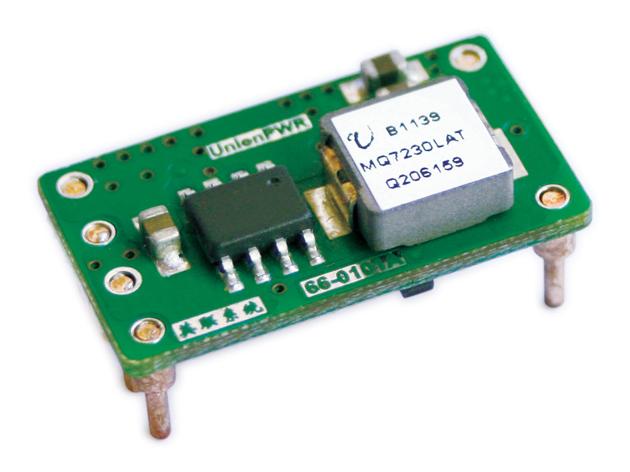

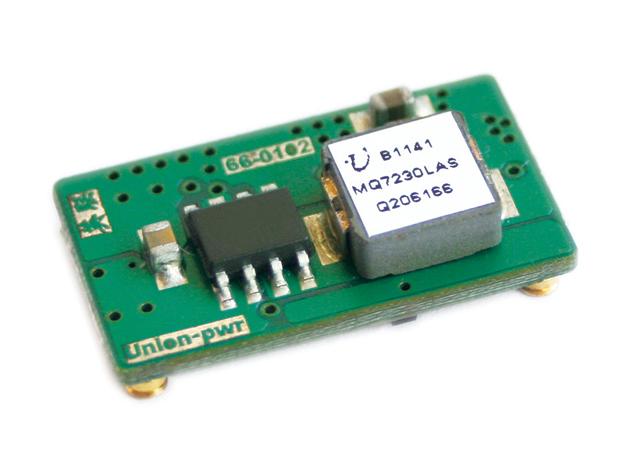

¨  MQ7230LA  Size: 22.1 mm x 12.6mm x 8.0 mm or (0.87 in x 0.5 in x 0.31 in)

¨  MQ7230LB  Size: 18.9 mm x 12.6 mm x 6.4 mm or( 0.75 in x 0.5 in x 0.25 in)

?  No derating to +75℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
