The CompatX^TM MQ7280L Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3~14Vdc  and provide a precisely (2%) regulated dc output with industry standard TH and SMT pin-out. Such a module is suitable to application with 3V, 5V or 12V power supply bus. The modules have a maximum output current rating of 30A at a typical full-load efficiency over 93%.  The EZ-Tracking^TM of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

?  Wide Operating voltage: 3~3.6V/ 4.5~5.5V/ 9.6~14V

?  Output Current up to 30A

?  Wide-Output Voltage:

        0.8~2.5V/ 0.8~3.6V/ 0.8~1.8V or 1.2~5.5V

?  High Efficiency: 93 %

?  Output voltage ripple: 40mV_PP

?  Margin-up /Margin-Down

?  Overcurrent /shortcircuit protection

?  Over-temperature protection

?  Remote on/off control - positive logic

?  High reliability: designed to meet 5 million hour MTBF

?  Minimal space on PCB:

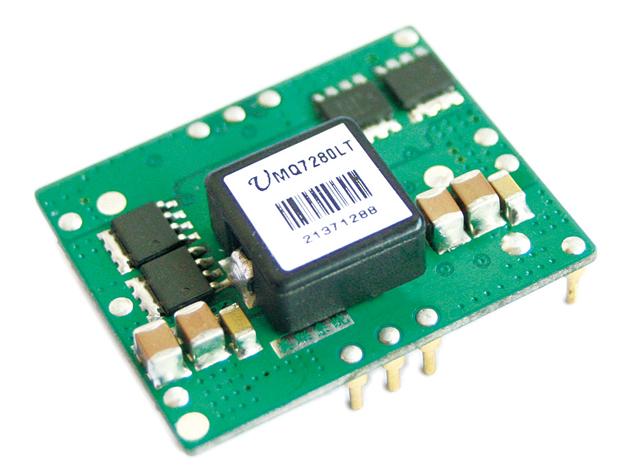

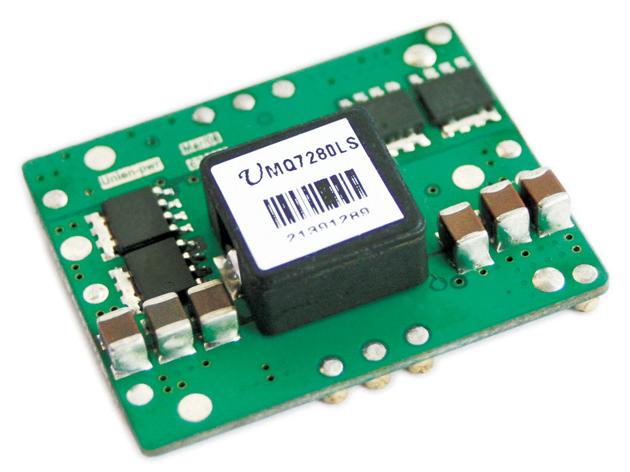

       MQ7280L03:  34.8 mm x 28.45 mm x 11.2 mm or (1.37 in x 1.12 in x 0.44 in )

       MQ7280L05:  34.8 mm x 28.45 mm x 11.2 mm or (1.37 in x 1.12 in x 0.44 in )

       MQ7280L12L/W:  34.8 mm x 28.4 mm x 8.9 mm or (1.37 in x 1.12 in x 0.35 in )

?  Sequencing -- EZ-Tracking^TM

?  Operating Temperature: -40℃ to +85℃

?  UL/IEC/EN60950 compliant

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
