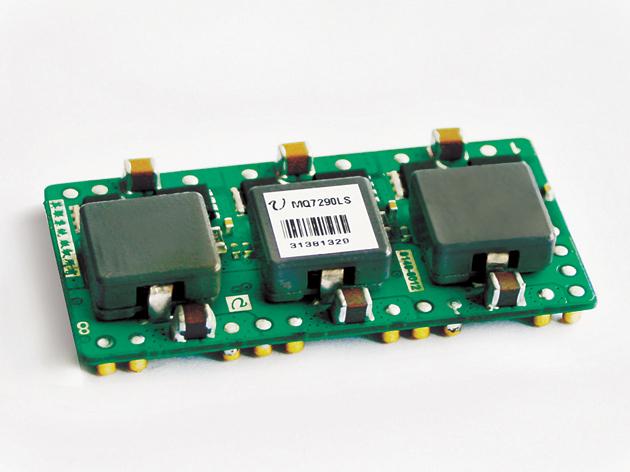

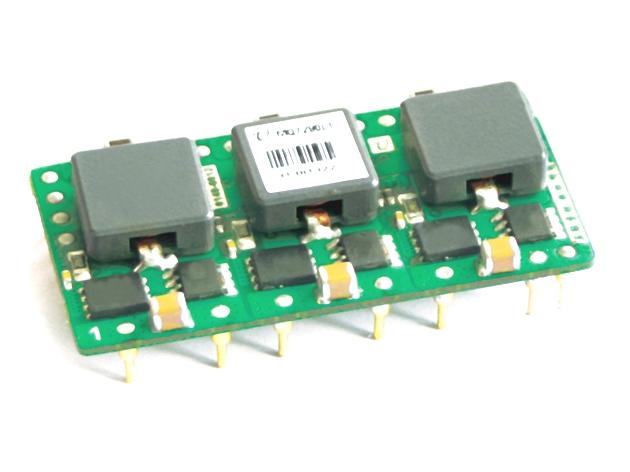

The CompatX^TM MQ7290L Series Power Modules are non-isolated dc-dc converters that operate over wide input voltage ranges of 8~14V and provide a precisely (2%) regulated dc output with industry standard TH and SMT pin-out. Such a module is suitable to application with  12V power supply bus. The modules have a maximum output current rating of 50A at a typical full-load efficiency over 96%.  The  EZ-Tracking^TM function simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

?  Wide Operating voltage: 8~14V

?  Output Current up to 50A

?  Wide-Output Voltage:  0.8~5.5V/ 0.8~8.5V

?  High Efficiency: 96 %

?  Overcurrent /shortcircuit protection

?  Over-temperature protection

?  Remote on/off control - positive logic

?  High reliability: designed to meet 5 million hour MTBF

?  Minimal space on PCB: 51.9 mm x 26.5 mm x 9.7mm or (2.05 in x 1.05 in x 0.38 in )

?  Sequencing -- EZ-Tracking^TM

?  Operating Temperature: -40℃ to +85℃

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
