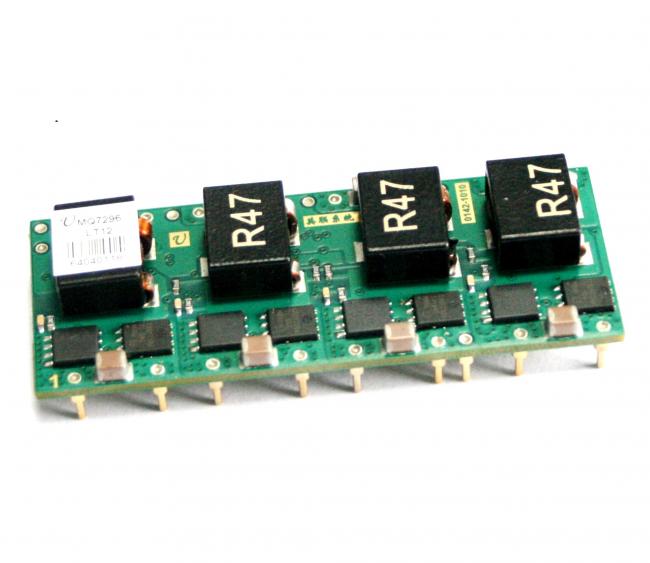

The CompatX^TM  MQ7296L series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 6Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with unregulated 12V power supply bus. The modules have a maximum output current rating of 100A at a typical full-load efficiency over 93%. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

?  Unregulated 12V input voltage

?  Output Voltage: 0.8V~2V

?  Output Current up to 100A

?  Output voltage ripple: 40mV_PP

?  High Efficiency 93% (12Vin, 2V output, 80A)

?  Remote on/off control

?  Overcurrent /shortcircuit protection

?  Over-temperature protection

?  Remote Sense

?  EasyTrack^TM

?  High reliability: designed to meet 5 million hour MTBF

?  Minimal space on PCB:

¨  68.1 mm x 26.5 mm x 10.6 mm or

¨  2.68 in x 1.05 in x 0.42 in

?  Operating Temperature:-40℃to +85℃

?  UL/IEC/EN60950 compliant

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
