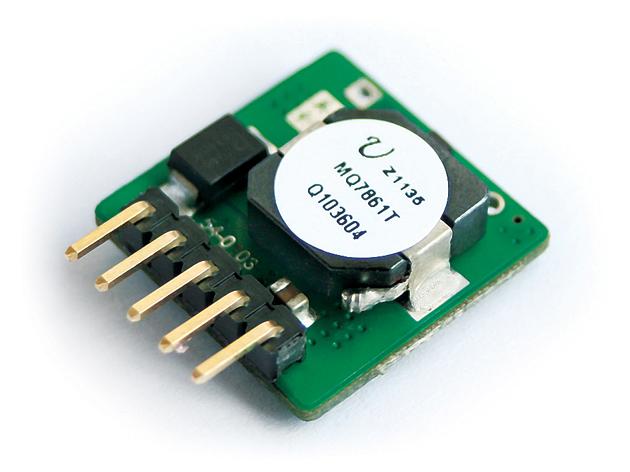

The PowerBean^TM MQ7861 Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5Vdc to 20Vdc and provide a precisely (1%) regulated dc output. Such a module is suitable to applications like industrial automatic control, audio and video devices, and data acquisition systems. The modules have a maximum output current rating of3Aat a typical full-load efficiency 88%.

?  Wide Operating Voltage: 4.5V ~ 20V

?  Output Voltage: 1.22V ~ 12V

?  Output Current Up to3A

?  Low output voltage ripple

?  Overcurrent / shortcircuit protection

?  Remote Control – Positive Logic

?  Minimal space on PCB:

u  SIP PIN out

¨ 17.78 mmx17.78 mmx6.7 mmor

¨ 0.7 inx0.7 inx0.26 in

u  SMT PIN out

¨ 17.78 mmx17.78 mmx8.8 mmor

¨ 0.7 inx0.7 inx0.34 in

?  No derating to +55℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Industry Control

¨  Audio Video Devices

¨  Data Acquisition Equipment
