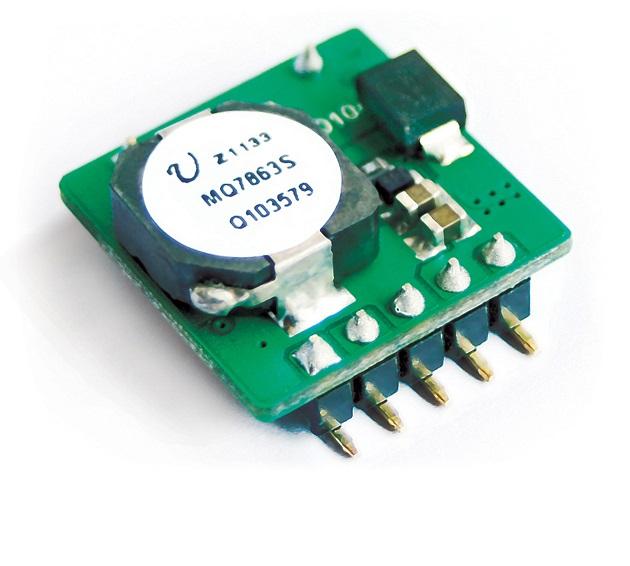

The PowerBean^TM MQ7863 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 5Vdc to 18Vdc and provide a precisely (3%) regulated negative dc output with industry. Such a module is suitable to applications like industrial automatic control, audio and video devices, and data acquisition systems.

?  Wide operating voltage: 5V ~ 18V

?  Output Voltage: -5V ~ -18V

?  Low output voltage ripple

?  Overcurrent /shortcircuit protection

?  Over-temperature protection ;

?  Remote Control:  Positive Logic ( EN Floating -- OFF)

?  Minimal space on PCB:

u  SIP PIN out

¨ 17.78 mmx17.78 mmx6.7 mmor

¨ 0.7 inx0.7 inx0.26 in

u  SMT PIN out

¨ 17.78 mmx17.78 mmx8.8 mmor

¨ 0.7 inx0.7 inx0.34 in

?  No derating to +55℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Industry Control

¨  Audio Video Devices

¨  Data Acquisition Equipment
