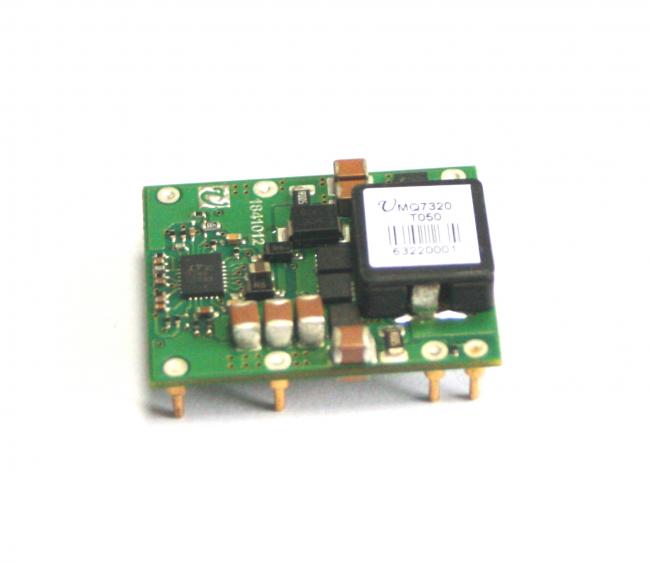

The MQ7320 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 6Vdc to 36Vdc and provide a precisely (2%) regulated dc output. Such a module is suitable to applications with unstable 12V or 24V power supply. The modules have a maximum output power up to 40W at typical full-load efficiency over 94%.

?  Wide input voltage: 6V ~ 36V

?  Full load operating voltage: 9~30V

?  Output power up to 40W

?  Output voltage ripple: 60mV_PP(12V output)

?  High Efficiency 94%(12Vin/12Vout with 40W load)

?  Overcurrent /shortcircuit protection – continuous, Re-startup automatically after fault release

?  Remote on/off control-negative logic

?  Input under-/over-voltage protection -- shutdown

?  High reliability: designed to meet 20 million hour MTBF

?  Minimal space on PCB:

?  Compact size:

¨  33.0 mm x 25.4 mm x 11.5 mm or

¨  1.3 in x 1.0 in x 0.45in

?  No derating to +85℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant available

¨  Automotive Systems

¨  Distributed DC Power Systems

¨  High Power Battery-Operated Devices

¨  Industrial Control
