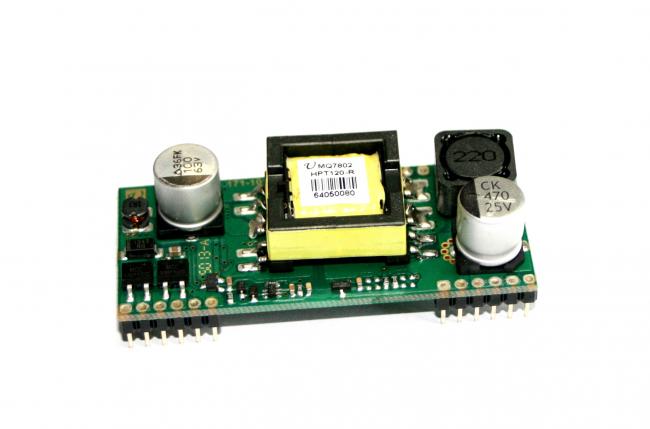

The POE MQ7802HP series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af/at Power-over-Ethernet (PoE) standard. IEEE 802.3af/at allows for two power options for Category 5 cables and the MQ7802HP have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this.

The MQ7802HP signature and control circuit provides the PoE AT compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 30W power to the port. The MQ7802HP is compatible with Class 0 to Class 4 equipment.

The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.

?  Wide operating voltage:

¨  42V ~ 57V

?  Full features 802.3af/at interface built-in

?  Output Current:

¨  12V,2.5A

¨  5V, 6A

?  Output voltage ripple: 200mV_PP

?  High Efficiency 90% (input 48V, 12V@2.5A)

?  Overcurrent /shortcircuit protection

?  High reliability: designed to meet 5 million hour MTBF

?  Minimal space on PCB:

¨ 62.2 mmx27 mmx15.24 mmor

¨  2.45 in x1.06 inx0.6 in

?  No derating to +65℃, without convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant available

?  Operating Temperature: -40℃ ~ +85℃

¨  IP Phone

¨  Wireless Access Point

¨  Video Supervisory
