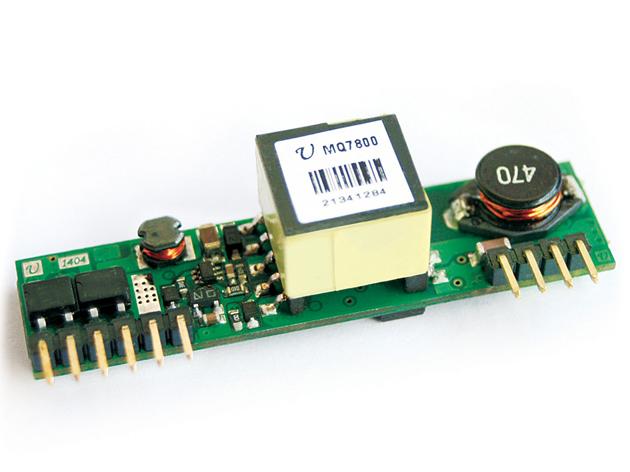

The POEMQ78X00 C/D series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables and the MQ78X00C/D have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this. The MQ78X00C/D signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The MQ78X00C/D is preset to Class 0. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.

? Wide operating voltage: 36V ~ 57V

? Output Current : 12V, 1.1A

? Output voltage ripple: 150mVPP, (12V@1.1A)

? High Efficiency (input 48V, Load12V@1.1A)

      85%, MQ78X00-120

      82%, MQ78X00-120LP

? Overcurrent /short circuit protection

? External 12V passby input

? High reliability: designed to meet 500K hour MTBF

? Standard 38mm*38mm size with total height:

       Standard version: 16.0 mm(max);

       Low profile version: 10.8mm(max)

? No derating to +TBD℃(inside closed box)

? UL/IEC/EN60950 compliant

? RoHS Compliant available


? IP Camera

? IP Phone

? Wireless Access Point

? Video Supervisory
