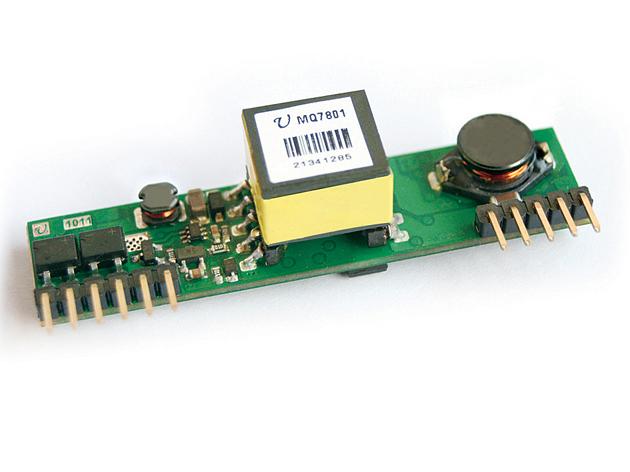

The POE MQ7801 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af/at Power-over-Ethernet (PoE) standard. IEEE 802.3af/at allows for two power options for Category 5 cables and the MQ7801 have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this.

The MQ7801 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The MQ7801 is compatible with Class 0 to Class 3 equipment.

The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection

?  Wide operating voltage:

¨  MQ7801: 36V ~ 57V

?  Output Current

¨  12V,1.1A

¨  5V,2A

¨  3.3V,2A

?  Output voltage ripple: 100mV_PP

?  High Efficiency 84% (input 48V, Load12V@1.1A)

?  Startup to6A/5mS, optimized to wireless application

?  Minimum Load: 1W

?  Overcurrent /shortcircuit protection

?  High reliability: designed to meet 5 million hour MTBF

?  Minimal space on PCB:

¨ 62.2 mmx14 mmx16 mmor

¨ 2.45 inx 0.55 inx0.63in

?  No derating to +85℃, inside closed box

?  UL/IEC/EN60950 compliant

¨  IP Camera

¨  IP Phone

¨  Wireless Access Point

¨  Video Supervisory
