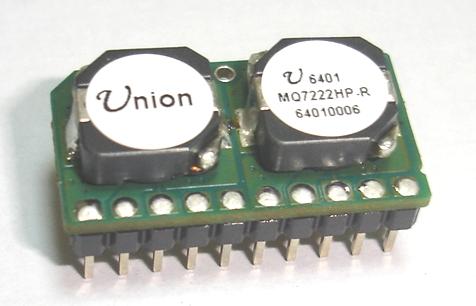

The Micro-BiTarzan^TM MQ7222HP Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 4.5Vdc to 15Vdc and provide a precisely (2%) regulated dc output. Such a module is suitable to applications with unregulated 12V power supply bus or low-cost ac-wall adapter, which have two and more lower voltages with each current not too high. The modules have a maximum output current rating of3Afor each output at typical full-load efficiency over 90%. Standard features include remote on/off with positive logic and output voltage wide trim, over-current protection etc

?  Wide Operating Voltage: 4.5V ~ 15V

?  Dual independent input ends

?  Non-isolated

?  Output Voltage: 0.6V ~ 5.5V

?  Output Current Up to 6A for each channel

?  Low output voltage ripple 50mVpp

?  Overcurrent / shortcircuit protection

?  Remote Control – Positive Logic

?  Minimal space on PCB:

¨  26.65 mm x 14.36 mm x6.7mm or

¨  1.05 in x 0.565 in x 0.26 in

?  No derating to TBD℃, natural convection

?  UL/IEC/EN60950 compliant

?  RoHS Compliant

¨  Workstations, servers

¨  Desktop computers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
